Sold as complete kit and lightly assembled/ sub assemblies. Lancer Evo 10 MML Sport R4 suspension

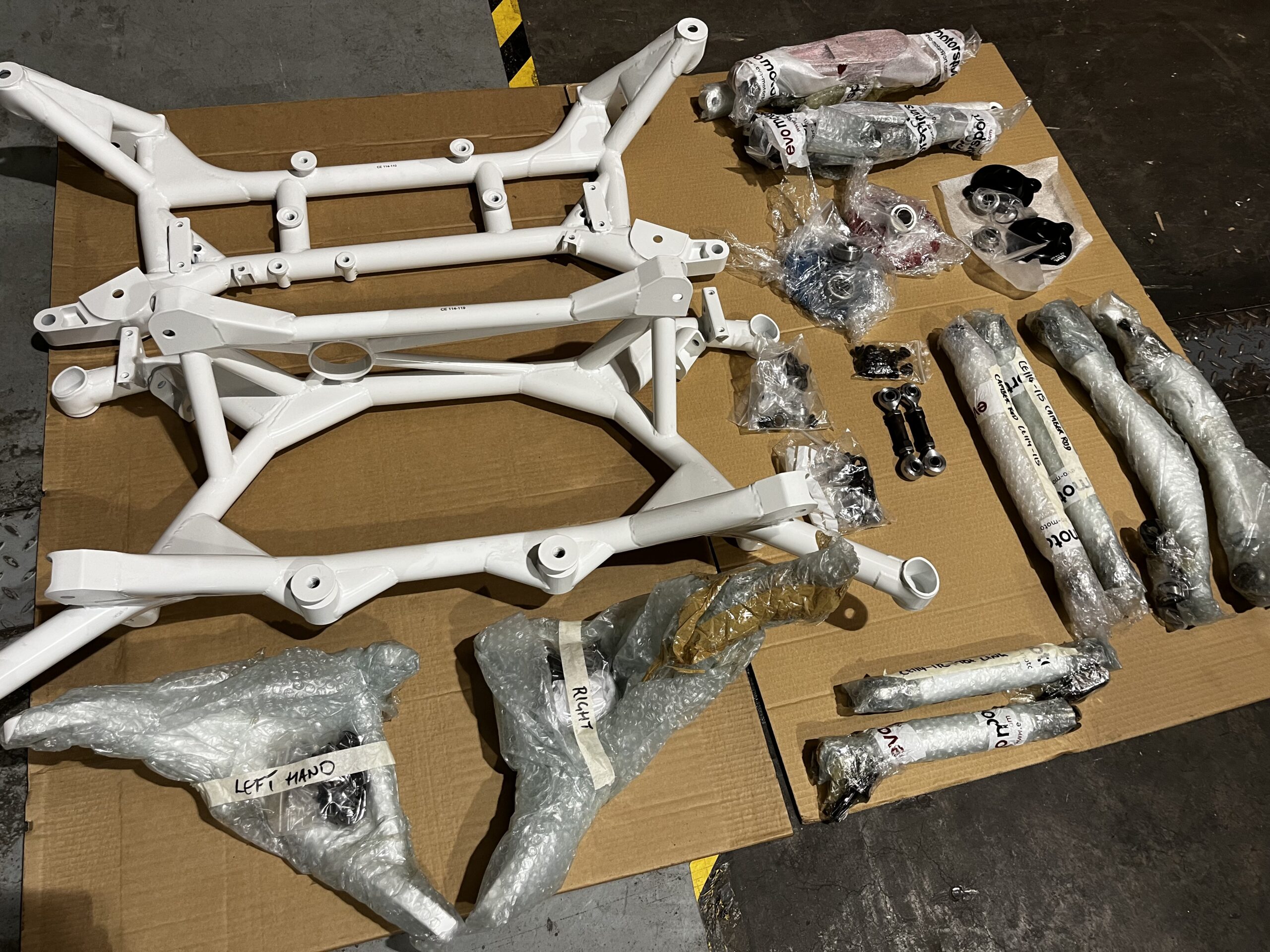

Kit consists of (full list on the botom of the page):

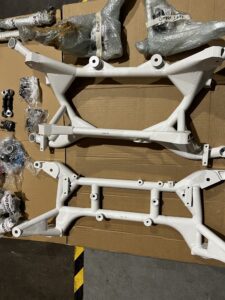

– Front Tubular Subframe – 1 pcs
– Rear Tubular Subframe – 1 pcs
– Front Aluminium Arms (LH + RH) with front Outrigger Arms – 2 pcs
– Front Anti Roll Bar drop Links – 2 pcs
– Rear Longitudinal Arms – 2 pcs
– Rear Toe Arms – 2 pcs
– Rear Camber Arms – 2 pcs
– Rear upper arms LH+RH – 2 pcs
– Rear Anti Roll Bar drop Links – 2 pcs
Features:
– developed based on 3D scan
– full CAD designed and FEA tested
– manufactured from T45 tubbing, milled parts from C45 metal and plates form S355 steel
– tubing CNC bent and laser cut
– front arms manufactured from 7075 billet aluminum, anodized
– Tig Welded with special weld wire for T45
– bearings / rod-ends – same as used in original Ralliart MML R4 kit
